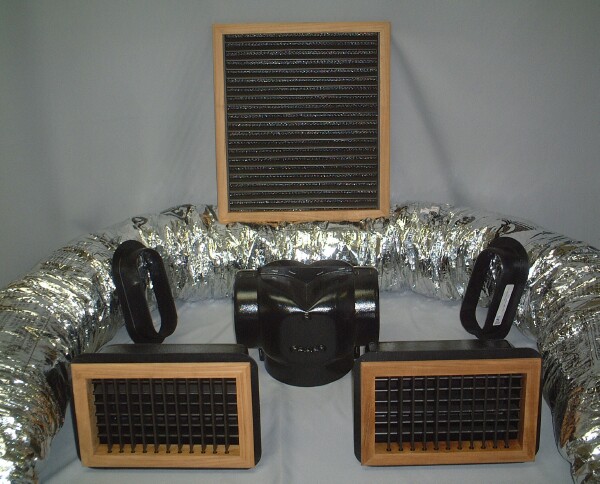

DKP-24D
Duct Kit Schematic
DKP-24D Schematic
DKP-24D
HRO6

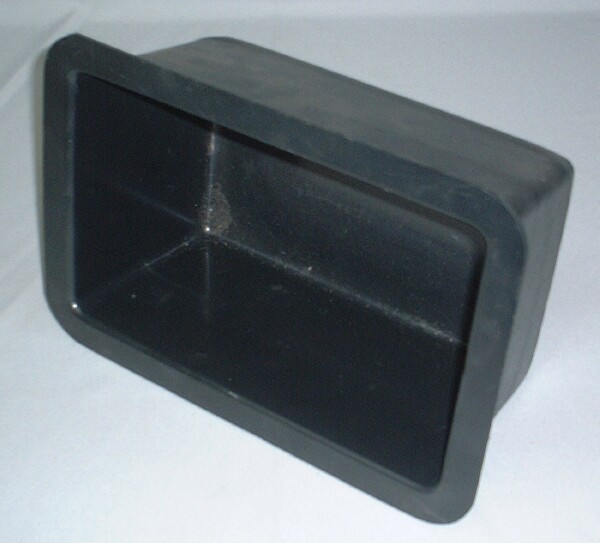

TB-10x06
14x16 RART

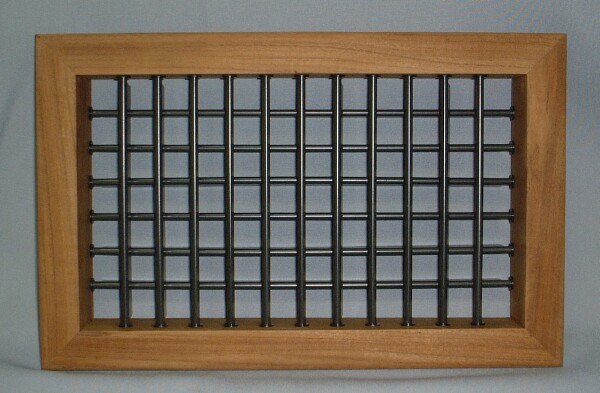

10x06 VHT
14x16 RART
TEAK RETURN
AIR GRILLE
w/ FILTER
HRO6
HOSE RING 6" OVAL
(QTY:2)
10x06 VHT
TEAK SUPPLY AIR GRILLE
(QTY:2)
TB-10x06
GRILLE TO
FLEX DUCT
TRANSITION BOX
(QTY:2)
Duct Kit Parts List
Duct Kit Parts List
CLICK PICTURES TO ENLARGE

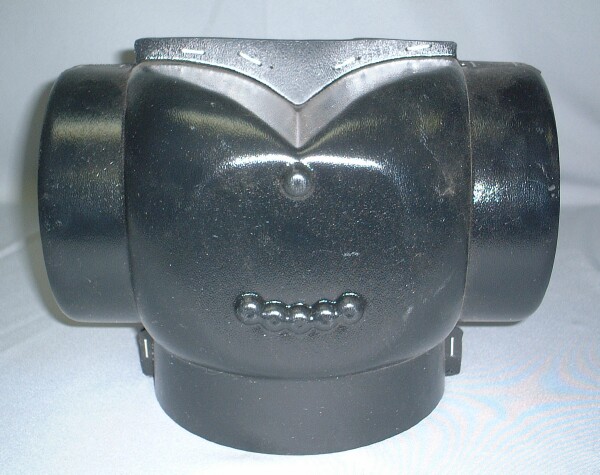

AT766
AT766
ADAPTER TEE
7" INLET TO 2) 6" OUTLETS
